St. Steel - Hand knobs

GN 5335

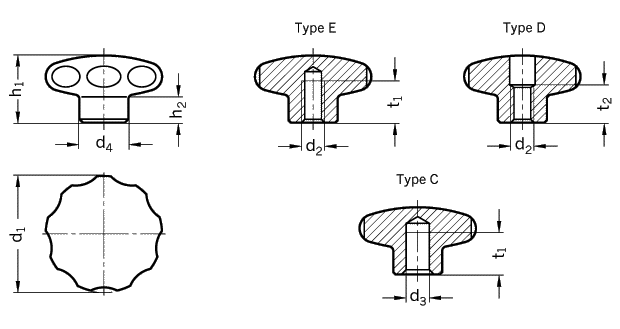

Type D with threaded through bore
Type E with threaded blind bore Type C with plain blind bore, Tol. H7
d1 d2 d3 H7 d4 h1 h2 t1 t2
  Thread Bore (B)       min.

40 M 6 M 8 B 8 18 26,5 11 12/15 13
50 M 8 M 10 B 10 21 29 12 15/18 16
60 M 10 M 12 B 12 25 33 12 18/22 20
Specification Information How to order
Stainless steel
German Standard No. 1.4305

matt shot-blasted

St. Steel - properties

St. Steel-Hand knobs GN 5335 are a special development intended for the food processing machinery industry. Large radii and smooth surfaces have been introduced to meet the highest hygienic demands of today.

Hand knobs GN 6336.1 / GN 6336.2
(Plastic with St. Steel boss)

St. Steel-Hand knob
GN 5335-50-M10-E

Code No. 5335
d1 50
d2 (d3) M10
Type E
