St. Steel - Hand knobs
GN 5334

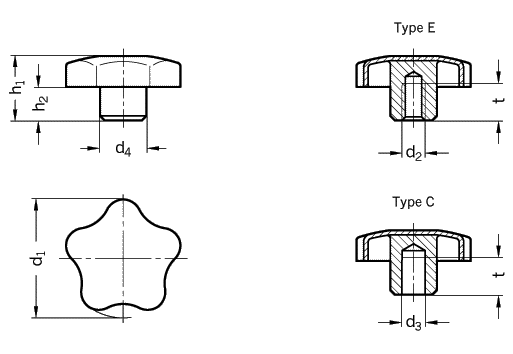

Type E with threaded blind bore Type C with plain blind bore, Tol. H7
d1 d2 d3 H7 d4 h1 ~ h2 ~ t
  Thread Bore (B)       min.

40 M 8 B 8 14 24 12 15
50 M 10 B 10 18 31 17,5 18
60 M 12 B 12 20 39 21 22
Specification Information How to order
Stainless Steel
German Standard No. 1.4301

Knob drawn from
St. Steel-sheet

Hub butt-welded

matt shot-blasted

St. Steel - properties

 Refined and cost saving manufacturing techniques have made the hand knobs GN 5334 a very attractive and price worthy St. Steel-execution.

Hand knobs GN 6336.1 / GN 6336.2
(Plastic with St. Steel boss)

 St. Steel-Hand knob
GN 5334-50-M10-E

Code No. 5334
d1 50
d2 (d3) M10
Type E
