  		 Plastic with all steel boss
Hand knobs		 GN 6336.1
GN 6336.2

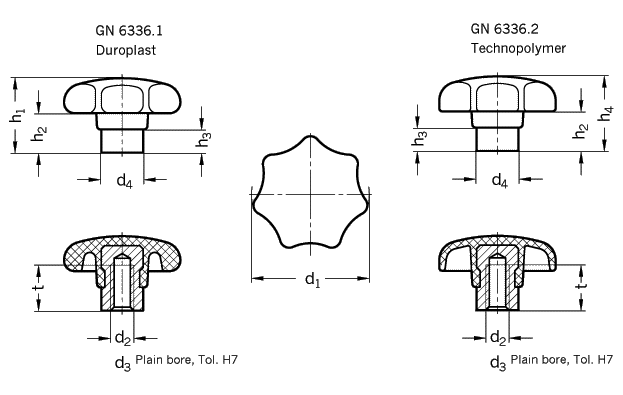

Type E with threaded blind bore Type C with plain blind bore (B)
d1 d2   d3      d4 h1 h2 h3 h4 t
  GN 6336.1 GN 6336.1 GN 6336.2         min.
  GN 6336.2
  Type E   Type C   Type C

32 M 6 - B 6 - B 6 12 21 10 8,5 20 12
40 M 6 M 8 B 6 B 8 B 8 14 26 13 10 25 14
50 M 8 M 10 B 8 B 10 B 10 18 34 17 10 32 18

63 M 10 M 12 B 10 B 12 B 12 20 42 21 14 40 22
80 M 12 M 16 B 16 - B 16 25 52 27 15 52 30
Specification Information How to order
GN 6336.1
Plastic
Duroplast (Phenolic)

black, shiny

Boss steel, zinc plated

GN 6336.2
Plastic
Technopolymer (Polyamide)
reinforced

black matt finish

Boss steel, zinc plated

 Hand knobs GN 6336.1 / GN 6336.2 with all steel boss have important advantages:

The face of the boss is exactly square to the bore and is in steel to prevent edge breakages. Cross-dowels can be used successfully.

Hand knobs DIN 6336
(Plastic without all steel boss)

Quick release hand knobsGN 6336.3

 Hand knob
GN 6336.1-63-M12-E

Code No. 6336.1
d1 63
d2 M12
Type E

Hand knob
GN 6336.2-50-B10-C

Code No. 6336.2
d1 50
d3 B10
Type C
