Protective caps
GN 806

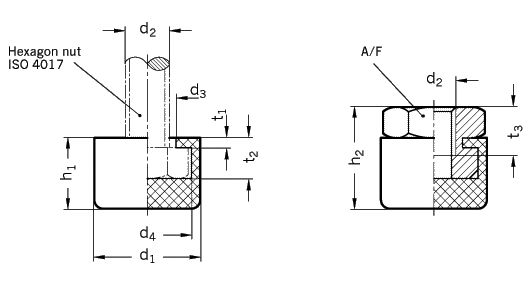

Type A protective cap (without nut) Type B protective cap with a threaded bush
d1 d2 d3 d4 h1 h2 A / F t1 t2 t3
                  min.

*11 M 4 5,5 8,2 6,5 1 4
12 M 5 7 9,3 8 11 10 1,5 5,3 6
15 M 6 8,5 11,5 10 14 12 2 6 7

19 M 8 11 15 13 18 16 2 7,5 8,5
24 M 10 13 20 16 23,5 21 2,2 9,2 10
26 M 12 16 22 19 26 22 2,5 10,5 12
Specification Information How to order
Protective cap
Neoprene
85 Shore hardness
black

Threaded bush
steel
zinc plated, blue passivated

* Protective caps d1 = 11
 are not available in
 Type B (with a threaded bush)

 Protective caps GN 806 can be used with hexagon nuts ISO 4017 or together with threaded pins type B as thrust pins with soft clamping head surface, or as soft end stop bolts.

A typical application is in conjunction with toggle clamps(product group 2.4).
The clamping bolts GN 807 specified in this latter group consists of hexagon screws with protective caps and two nuts.

Clamping bolts GN 807
(hexagon screws with protective cap and two nuts)

 Protective cap
GN 806-24-B

Code No. 806
d1 24
Type B
