Hexagon nut with ball socket |
GN 347 |

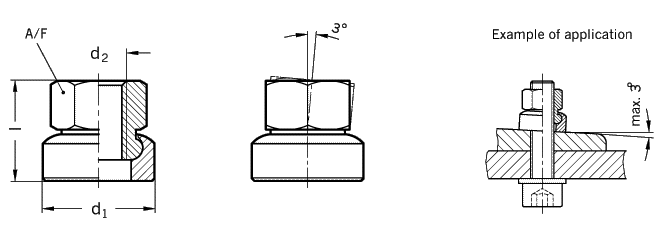

| d1 | d2 | l~ | A / F | ||
| 17 | M 8 | 14 | 13 | ||
| 21 | M 10 | 17,5 | 16 | ||
| 24 | M 12 | 21,5 | 18 | ||
| 30 | M 16 | 28 | 24 | ||
| 36 | M 20 | 35 | 30 | ||
| 44 | M 24 | 42,5 | 36 |
| Specification | Information | How to order |
| Steel Tensile strength 1000 N/mm2 blackened |
Hexagon nuts with ball socket GN 347 are capable of clamping slanting surfaces up to 3o without disturbing / twisting the clamped surface. | Hexagon nut with ball socket GN 347-30-M16 Code
No. 347 |
|
|
