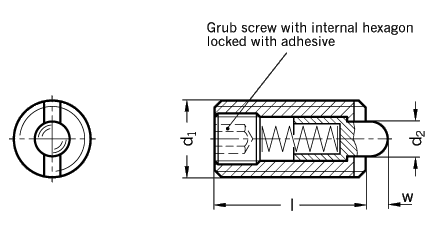

with bolt Spring plungers |
GN 616 |
| Type S steel bolt, with standard spring load | |
| Type SS steel bolt, with high spring load | Type K plastic bolt, with standard spring load |
| d1 | d2 | l + 0,2 | Internal | w +0,3/-0,1 | Spring load in N | Spring load in N | Code No. | ||
| hexagon | Com- | Type S / K | Type SS | Screw | |||||
| pression | initial | end | initial | end | driver | ||||
| M 3 | 1 | 12 | 0,7 | 1 | 2 | 4 | - | - | GN 616.5-M 3 |
| M 4 | 1,5 | 15 | 1,3 | 1,5 | 4,5 | 16 | - | - | GN 616.5-M 4 |
| M 5 | 2,4 | 18 | 1,5 | 2,3 | 6 | 19 | 11 | 40 | GN 616.5-M 5 |
| M 6 | 2,7 | 20 | 2 | 2,5 | 6 | 19 | 15 | 43 | GN 616.5-M 6 |
| M 8 | 3,5 | 22 | 2,5 | 3 | 10 | 39 | 20 | 75 | GN 616.5-M 8 |
| M 10 | 4 | 22 | 3 | 3 | 10 | 39 | 20 | 75 | GN 611.5-M10 |
| M 12 | 6 | 28 | 4 | 4 | 12 | 53 | 45 | 120 | GN 611.5-M12 |
| M 16 | 7,5 | 32 | 5 | 5 | 45 | 100 | 64 | 160 | GN 611.5-M16 |
| M 20 | 10 | 40 | 6 | 7 | 52 | 125 | 75 | 195 | GN 616.5-M20 |
| M 24 | 12 | 52 | 8 | 10 | 70 | 170 | 75 | 245 | GN 611.5-M24 |
| Specification | Information | How to order |
| Steel
blackened Bolt Type S and Type SS Bolt Type K Blank grub screw |
Spring plungers GN 616 are used as detents as well as
for push-on and push-off applications and ejectors.
The slot on the plunger side is provided for blind hole applications. A special screw driver GN 616.5 / GN 611.5 is available. Spring plungers GN 616 with the thread lockings MVKand PFBon inquiry. |
Spring plunger GN 616-M6-S Code
No. 616 |
|
|
