  		 for side thrust pins GN 714 / GN 715
Eccentric bushes
GN 715.2

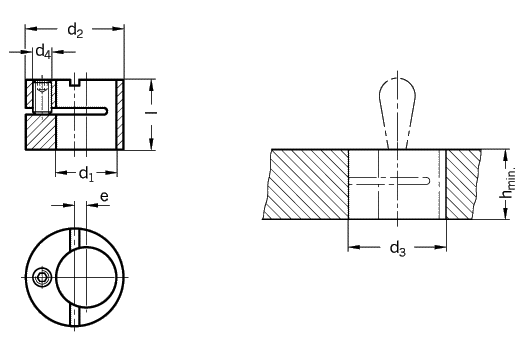

d1 d2 h6 d3 H7 d4 e h l -0,2 For side
          min.   thrust pins


6 12 12 M 4 2 10 9,9 3
10 16 16 M 4 2 12 11,9 5 / 6
12 18 18 M 4 2 14 13,9 8

16 25 25 M 6 3 18 17.9 10
Specification Information How to order
Steel

blackened

Eccentric bushes GN 715.2 allow side thrust pins GN 715 / GN 714 to be adjusted. These bushes allow the side thrust pin to be precisely adjusted to suit the requirements for clamping of a component.

Side thrust pins GN 715

Side thrust pins GN 714

Eccentric bushes
GN 715.2-6

Code No. 715
d1 6
