  		 Cast iron / Aluminum
Hand knobs		 Extract from
DIN 6336

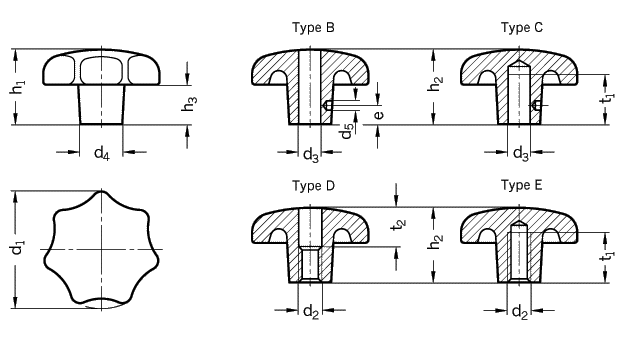

Type A casting only
Type B with plain through bore, Tol. H7 Type D with threaded through bore
Type C with plain blind bore, Tol. H7 Type E with threaded blind bore
d1 d2 d3 H7 d4 d5 e h1 h2 h3 t1 t2
  Thread Bore (B)       Type Type   min.
        A B-E

32 M 6 - B 6 - 12 2,3 6 21 20 10 12 10
40 M 8 - B 8 - 14 2,8 7 26 25 13 15 12
50 M 8 M 10 B 8 B 10 18 2,8 8 34 32 17 18 16

63 M 10 M 12 B 10 B 12 20 3,8 10 42 40 21 22 20
80 M 12 M 16 B 12 B 16 25 3,8 12 52 50 25 28 30
Specification Information How to order
Cast iron (GG)

fettled and tumbled

Aluminum (AL)
only size 40, 50, 63, 80
only type C, D ,E

matt (MT)
matt surface (linished)
flash mark not visible

polished (PL)

MT or PL to be specified
for hand knobs in aluminum

 Hand knobs GN 6336.4
(with male thread)

Hand knobs GN 5336
(Aluminum)

 Hand knob
DIN 6336-GG-63-M12-D

Code No. 6336
Material GG
d1 63
d2 (d3) M12
Type D

Hand knob
DIN 6336-AL-40-B8-C-PL

Code No. 6336
Material AL
d1 40
d2 (d3) B8
Type C
Finish PL
