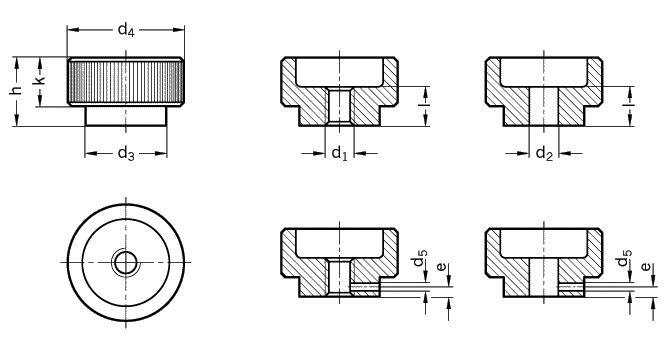

Knurled nuts		 Extract from
DIN 6303


Type A without dowel hole Type B with dowel hole
d1 d2 H7 d3 d4 d5 H11 e h k l
Thread Bore (B)

M 5 B 5 14 20 1,5 2,5 12 8 7
M 6 B 6 16 24 1,5 2,5 14 10 8
M 8 B 8 20 30 2 3 17 12 10

M 10 B 10 28 36 3 4 20 14 12
M 12 B 12 32 40 4 4 24 16 16
Specification Information How to order
Steel

blackened

 Quick release knurled nutGN 6303.1

Knurled nuts GN 420
(Plastic)

 Knurled nut
DIN 6303-M8-A

Code No. 6303
d1 (d2) M8
Type A
