Ball point screws |
GN 606 |

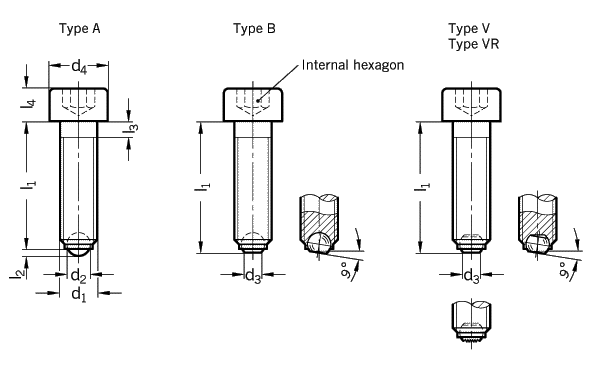

| Type A full ball | Type V flat ball, with swivel limiting stop |
| Type B flat ball | Type VR flat ball, with swivel limiting stop, corrugated |
| d1 | l1 | d2 | d3 | d4 | l2 | l3 | l4 | Internal | ||
| Nominal size | Hexagon | |||||||||
| M 6 | 20 | 30 | 40 | 4 | 3,2 | 10 | 0,8 | 3 | 6 | 5 |
| M 8 | 20 | 35 | 50 | 5,5 | 4,5 | 13 | 1,2 | 3,5 | 8 | 6 |
| M 10 | 25 | 40 | 60 | 7 | 6 | 16 | 1,7 | 4,5 | 10 | 8 |
| M 12 | 30 | 50 | 80 | 8 | 7,2 | 18 | 2 | 5 | 12 | 10 |
| M 16 | 40 | 60 | 80 | 12 | 10,7 | 24 | 3,3 | 6 | 16 | 14 |
| Specification | Information | How to order |
| Steel Tensile strength 1000 N/mm2 blackened Ball blank |
Ball point screws GN 606 with full ball (Type A) are
used in applications where a ball point contact is required.
The flat faced moving ball (Type B) allows a clamping or supporting of non parallel surfaces. The ball of type V/VR can be swivelled to a maximum of 9 to ensure that clamping is always maintained on the flat section of the ball. Ball point screws GN 605 |
Ball point screw GN 606-M8-20-B Code
No. 606 |
|
|
