Spring elements |
GN 513 |

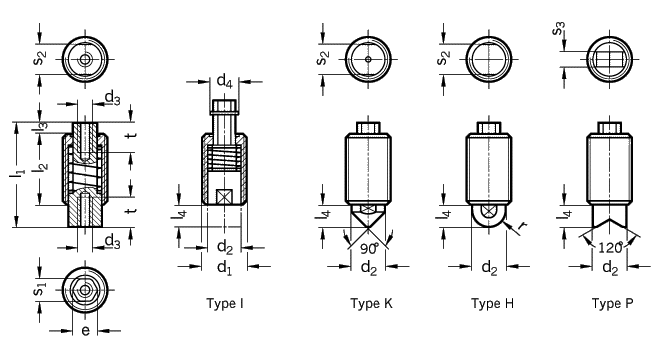

| Type I Female thread | |
| Type K Pointed nose (90�) | |
| Type H Semi-spherical | Identification 1 normal spring load |
| Type P Prism (120o) | Identification 2 higher spring load |
| d1 | d2 | d3 | d4 | e | l1 | l2 | l3 | l4 | r | s1 | s2 | s3 | t | Spring load N | Spring load N | ||
| min. | normal | higher | |||||||||||||||
| (Identification 1) | (Identification 2) | ||||||||||||||||
| initial | end | initial | end | ||||||||||||||
| M 12x1,5 | 9 | M 4 | 7,6 | 6,5 | 28 | 19 | 3 | 6 | 4,5 | 6 | 8 | 4 | 8 | 16 | 35 | 18 | 56 |
| M 16x1,5 | 12 | M 5 | 8,8 | 7,8 | 38 | 27 | 3 | 8 | 6 | 7 | 10 | 6 | 10 | 25 | 71 | 45 | 125 |
| M 20x1,5 | 14,5 | M 6 | 11,4 | 10 | 47 | 33 | 4 | 10 | 7,2 | 9 | 12 | 8 | 12 | 40 | 130 | 65 | 200 |
| Specification | Information | How to order |
| Steel
Threaded sleeve zinc plated Normal spring load: Higher spring load: Plunger case |
Spring elements GN 513 are universal pressure
elements used as detents, positioners or for clamping with spring
pressure. The spring loaded nose can be used for a push-on or push-off
operation. In addition the spring loaded nose cannot rotate.
At the pulling end the female thread will accept a pulling rod or an operating knob. Type I with a female thread at the pushing end can be fitted with a special plunger nose. The spring element can be screwed into a thread at the hexagon on the pulling end or the spanner flats at the pushing end of the plunger. Spring plungers
GN 613 |
Spring element GN 513-M12x1,5-H-2 Code
No. 513 |
|
|
