Knurled thumb screws

GN 421

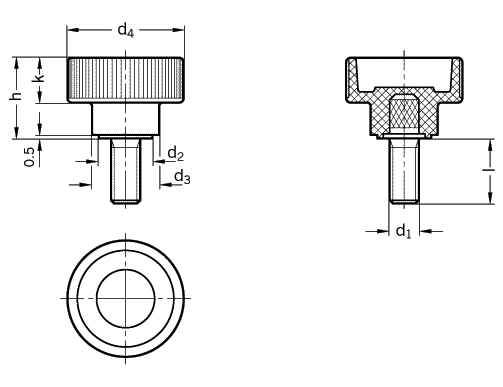

d1 Length l d2 d3 d4 h k

M 4 10 15 20 30   9 12 19 14 8
M 5 10 15 20 25   9 12 19 14 8
M 6 10 16 20 25 30 11 14 24 16,5 9,5

M 8 16 20 25 30 40 13 16 30 19,5 11
M 10 20 25 30 40 15 18 36 22,5 12,5
Specification   How to order
Plastic
Technopolymer (Polyamide)

black, shiny

Screw steel, zinc plated

Knurled thumb screw
GN 421-M6-25

Code No. 421
d1 M6
Length l 25
