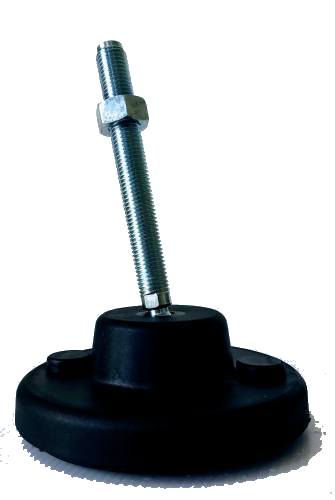

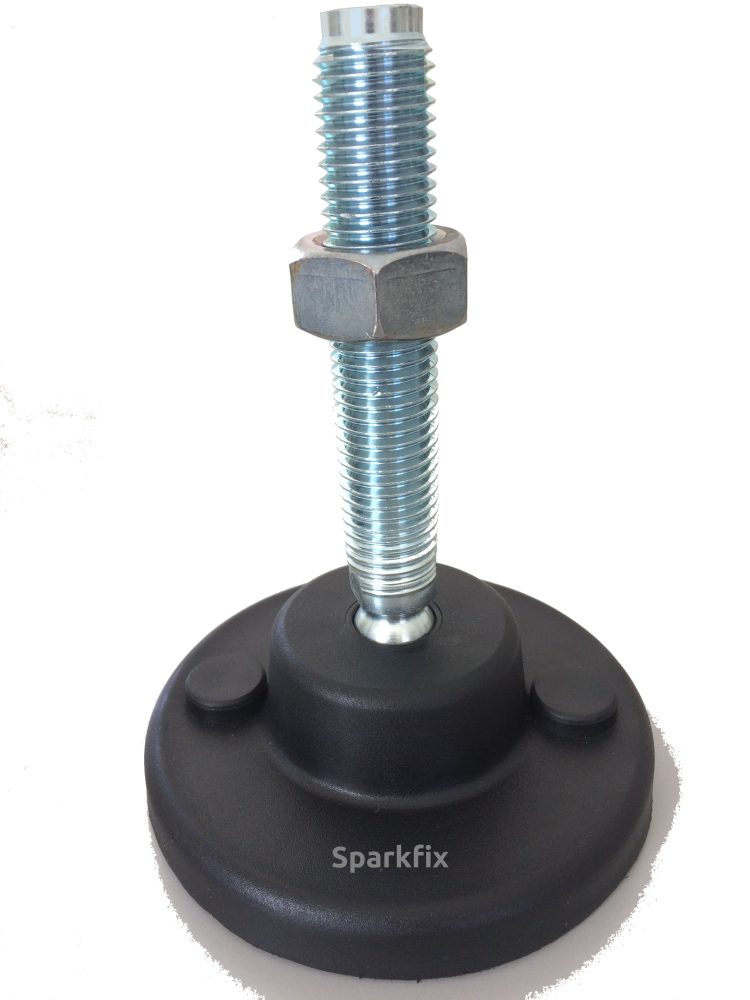

Sapata Articulada Niveladora 135mm SA135

Pé nivelador articulado, possui haste roscada articulada, que permite o nivelamento do equipamento compensando as irregularidades do piso.

  • Material da Base: Injetada em poliamida reforçada com fibra de vidro e redutores de impacto.
  • Material Rosca: Aço carbono zincado ou Aço inox AISI 304.
  • Parafuso: Usinado esférico e roscado.
  • Roscas mm: M16 - M20 - M24 - M30
  • Roscas em ( polegada ) 5⁄8”, 3⁄4”, 1”, 1-1⁄4” SOB ENCOMENDA LOTE MINIMO
  • Comprimentos de rosca: 100, 150, 200, 250, 300 COMPRIMENTOS MAIORES SOB ENCOMENDA
  • Apoio antiderrapante: somente para modelos FB ou AB.
  • Borracha nitrílica instalada na parte inferior da base, resistente à óleo na dureza 70 shore, evita o deslocamento do equipamento.

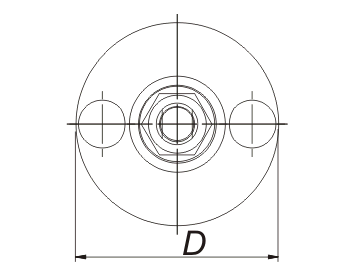

  • Base com diâmetro de 135 mm pé com sapata articulada não fixavel.
CÓDIGO
COM
BORRACHA		 CÓDIGO
SEM

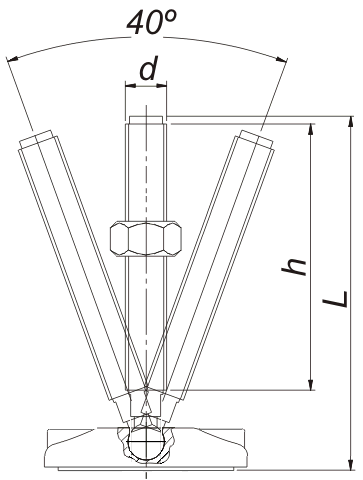

BORRACHA		 d
Ø ROSCA		 h
ROSCA UTIL
MM		 L
ALTURA
SEM BORRACHA		 L
ALTURA
COM BORRACHA		 CAPAC.
KG
P/PEÇA		 MATERIAL
DO
PARAFUSO
SA13516100FB SA13516100FN M16 60 100 103 1000 Ferro Zinc.
SA13516150FB SA13516150FN M16 110 150 153 1000 Ferro Zinc.
SA13516200FB SA13516200FN M16 160 200 203 900 Ferro Zinc.
SA13516250FB SA13516250FN M16 220 250 253 850 Ferro Zinc.
SA13520100FB SA13520100FN M20 60 100 103 1600 Ferro Zinc.
SA13520150FB SA13520150FN M20 110 150 153 1600 Ferro Zinc.
SA13520200FB SA13520200FN M20 160 200 203 1500 Ferro Zinc.
SA13520250FB SA13520250FN M20 220 250 253 1400 Ferro Zinc.
SA13524150FB SA13524150FN M24 110 150 153 2000 Ferro Zinc.
SA13524200FB SA13524200FN M24 160 200 203 1900 Ferro Zinc.
SA13524250FB SA13524250FN M24 220 250 253 1750 Ferro Zinc.
SA13524300FB SA13524300FN M24 270 300 303 1600 Ferro Zinc.
SA13530150FB SA13530150FN M30 110 150 153 4500 Ferro Zinc.
SA13530200FB SA13530200FN M30 160 200 203 4400 Ferro Zinc.
SA13530250FB SA13530250FN M30 220 250 253 4250 Ferro Zinc.
SA13530300FB SA13530300FN M30 270 300 303 4100 Ferro Zinc.
SA13516100AB SA13516100AN M16 60 100 103 1000 INOX 304
SA13516150AB SA13516150AN M16 110 150 153 1000 INOX 304
SA13516200AB SA13516200AN M16 160 200 203 900 INOX 304
SA13516250AB SA13516250AN M16 220 250 253 850 INOX 304
SA13520100AB SA13520100AN M20 60 100 103 1600 INOX 304
SA13520150AB SA13520150AN M20 110 150 153 1600 INOX 304
SA13520200AB SA13520200AN M20 160 200 203 1500 INOX 304
SA13520250AB SA13520250AN M20 220 250 253 1400 INOX 304
SA13524150AB SA13524150AN M24 110 150 153 2000 INOX 304
SA13524200AB SA13524200AN M24 160 200 203 1900 INOX 304
SA13524250AB SA13524250AN M24 220 250 253 1750 INOX 304
SA13524300AB SA13524300AN M24 270 300 303 1600 INOX 304
SA13530150AB SA13530150AN M30 110 150 153 4500 INOX 304
SA13530200AB SA13530200AN M30 160 200 203 4400 INOX 304
SA13530250AB SA13530250AN M30 220 250 253 4250 INOX 304
SA13530300AB SA13530300AN M30 270 300 303 4100 INOX 304
SA135.5/8.100FB SA135.5/8.100FN .5/8." 60 100 103 1000 Ferro Zinc.
SA135.5/8.150FB SA135.5/8.150FN .5/8." 110 150 153 1000 Ferro Zinc.
SA135.5/8.200FB SA135.5/8.200FN .5/8." 160 200 203 900 Ferro Zinc.
SA135.5/8.250FB SA135.5/8.250FN .5/8." 220 250 253 850 Ferro Zinc.
SA135.3/4.100FB SA135.3/4.100FN .3/4." 60 100 103 1600 Ferro Zinc.
SA135.3/4.150FB SA135.3/4.150FN .3/4." 110 150 153 1600 Ferro Zinc.
SA135.3/4.200FB SA135.3/4.200FN .3/4." 160 200 203 1500 Ferro Zinc.
SA135.3/4.250FB SA135.3/4.250FN .3/4." 220 250 253 1400 Ferro Zinc.
SA135.1.150FB SA135.1.150FN 1" 110 150 153 2000 Ferro Zinc.
SA135.1.200FB SA135.1.200FN 1" 160 200 203 1900 Ferro Zinc.
SA135.1.250FB SA135.1.250FN 1" 220 250 253 1750 Ferro Zinc.
SA135.1.300FB SA135.1.300FN 1" 270 300 303 1600 Ferro Zinc.
SA135.1-1/4.150FB SA135.1-1/4.150FN .1-1/4. 110 150 153 4500 Ferro Zinc.
SA135.1-1/4.200FB SA135.1-1/4.200FN .1-1/4. 160 200 203 4400 Ferro Zinc.
SA135.1-1/4.250FB SA135.1-1/4.250FN .1-1/4. 220 250 253 4250 Ferro Zinc.
SA135.1-1/4.300FB SA135.1-1/4.300FN .1-1/4. 270 300 303 4100 Ferro Zinc.
SA135.5/8.100AB SA135.5/8.100AN .5/8." 60 100 103 1000 INOX 304
SA135.5/8.150AB SA135.5/8.150AN .5/8." 110 150 153 1000 INOX 304
SA135.5/8.200AB SA135.5/8.200AN .5/8." 160 200 203 900 INOX 304
SA135.5/8.250AB SA135.5/8.250AN .5/8." 220 250 253 850 INOX 304
SA135.3/4.100AB SA135.3/4.100AN .3/4." 60 100 103 1600 INOX 304
SA135.3/4.150AB SA135.3/4.150AN .3/4." 110 150 153 1600 INOX 304
SA135.3/4.200AB SA135.3/4.200AN .3/4." 160 200 203 1500 INOX 304
SA135.3/4.250AB SA135.3/4.250AN .3/4." 220 250 253 1400 INOX 304
SA135.1.150AB SA135.1.150AN 1" 110 150 153 2000 INOX 304
SA135.1.200AB SA135.1.200AN 1" 160 200 203 1900 INOX 304
SA135.1.250AB SA135.1.250AN 1" 220 250 253 1750 INOX 304
SA135.1.300AB SA135.1.300AN 1" 270 300 303 1600 INOX 304
SA135.1-1/4.150AB SA135.1-1/4.150AN .1-1/4. 110 150 153 4500 INOX 304
SA135.1-1/4.200AB SA135.1-1/4.200AN .1-1/4. 160 200 203 4400 INOX 304
SA135.1-1/4.250AB SA135.1-1/4.250AN .1-1/4. 220 250 253 4250 INOX 304
SA135.1-1/4.300AB SA135.1-1/4.300AN .1-1/4. 270 300 303 4100 INOX 304
