with pressure pad in neoprene

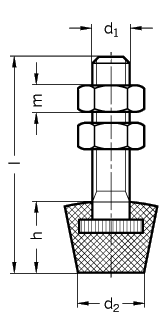

Clamping bolts
GN708


d1 Lengthl d2 h m
M5 45 10 11 4,7
M6 55 13 12 5,2
M8 68 16 18 6,8
M10 77 20 21 8,4
Specification How to order
Bolt
Steel, tensile strength 500 N/mm2
zinc plated, blue passivated

Hexagon nuts
ISO 4032
Steel
zinc plated, blue passivated

Pressure pad
neoprene 85 shore
bonded to the bolt
black

 Clamping bolt
GN708-M8-68

Code No.708
d1M8
Length l68

The two hexagon nuts are included parts of the order.
