Star knobs

GN 6335.9


d1 d2 d3 h1 h2 t
          min.

40 M 6 24 27 15,5 14,5
50 M 8 25 34 22,5 15
63 M 10 30 41 26,5 19

80 M 12 35 53 33,5 28,5
Specification Information How to order
Plastic
Technopolymer (Polyamide)

shock proof

black, matt

bushes
in high quality steel

nitrided

blackened

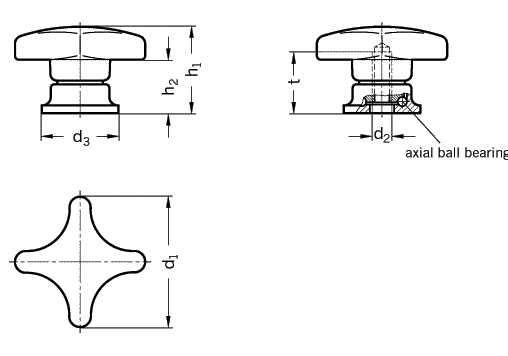

Star knobs GN 6335.9 have a clamping contact area which is connected to the knob via an axial ball bearing.

This has led to the following advantages:

Double clamping force through vastly reduced friction. There is no movement on the contact area between star knob and component which greatly reduces any marking on the clamping area. In addition a reduced creep factor has been achieved by the indreased preload.

Star knob
GN 6335.9-50-M8

Code No. 6335.9
d50
dM8
