  		 Stainless Steel - spindle
Revolving handles
GN 598.1

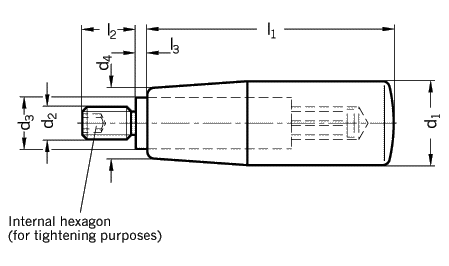

d1 d2 d3 d4 l1 l2 l3

18 M 6 10 15 40 12 2,5
21 M 6 10 17 50 13 2,5
23 M 8 13 19 65 14 2,5

26 M 10 13 21 80 16 2,5
28 M 10 13 22 90 16 2,5
31 M 12 14 25 102 20 2,5
Specification Information How to order
Plastic (KU)
Duroplast (Phenolic)
all sizes
black shiny finish

Plastic (KT)
Technopolymer
only sizes 18, 21, 23, 26, 28
black

Spindle
Stainless steel
German standard No. 1.4305

St. Steel properties

 Revolving handles GN 598.1 are noted for their modern design and they blend in well with the rectangular shaped rim handwheels. Revolving handle
GN 598.1-KU-21-M6

Code No. 598.1
Material KU
d1 21
d2 M6
