Cabinet "U" handles
GN 426.1

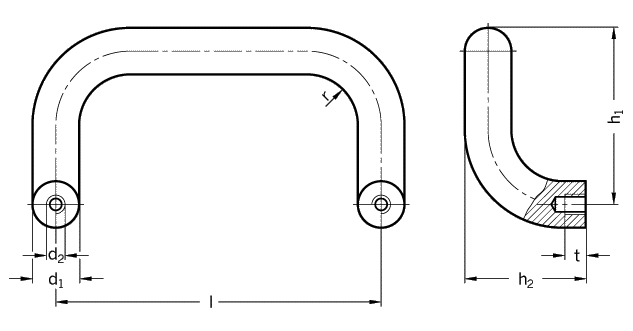

d1 Length l d2 h1 h2 r t
            min.

20 200 M 8 105 68 22 15
20 300 M 8 105 68 22 15

28 250 M 10 120 78 32 15
28 350 M 10 120 78 32 15
28 500 M 10 120 78 32 15
Specification Information How to order
Aluminum (AL)

Plastic coated
matt black (SW)
RAL 9005 textured finish

Cabinet "U" handles d1 = 28
are manufactured out of
aluminum tubing with a wall
thickness of 4 mm and fitted
with threaded aluminum
bushings

 Cabinet "U" handles GN 426.1 are from drawn aluminum.

Length other than standard are available - "especially extra long versions.

 Cabinet "U" handle
GN 426.1-AL-28-250-SM

Code No. 426
Material AL
d1 28
Length l 250
Finish SM
