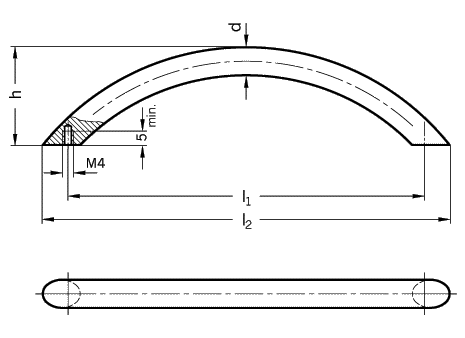

St. Steel - Arch handles |
GN 424 |
| d | l1 | l2 | h | ||
| 10 | 64 | 75 | 35 | ||
| 10 | 96 | 111 | 35 | ||
| 10 | 128 | 146 | 35 | ||
| 10 | 160 | 181 | 35 | ||
| 10 | 192 | 219 | 35 | ||
| Ausführung | Hinweis | Bestellbeispiel |
| Stainless Steel German Standard No. 1.4305 matt brushed |
St. Steel - Arch handles GN 424 are preferably used for such applications where easy sliding or folding doors or cabinet drawers can be opened with a single finger. Their shape blends well with modern design. |
St. Steel - Arch handles GN 424-10-128
Code No. 424 |
|
|
|
