Commercial cranked handles |
GN 369 |

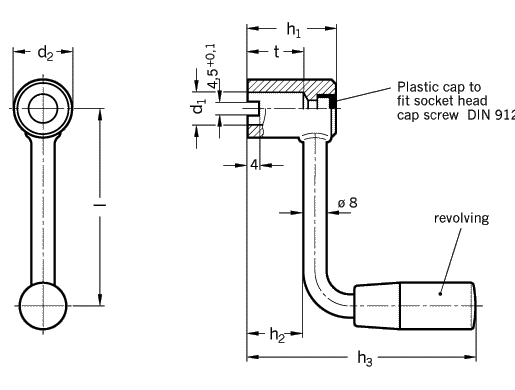

| Type A without slot | Type N with slot |
| Length l | d1 H9 | d2 | h1 | h2 | h3 | t +0,5 | for screws | |
| Bore (B) | handpiece | DIN 912 | ||||||
| 63 | B 10 | 18 | 28 | 18 | 74 | 18 | 18 | M 5 |
| 80 | B 10 | 18 | 28 | 18 | 74 | 18 | 18 | M 5 |
| 100 | B 12 | 20 | 30 | 20 | 88 | 20 | 21 | M 6 |
| 125 | B 12 | 20 | 30 | 20 | 88 | 20 | 21 | M 6 |
| Specification | Information | How to order |
| Steel shot-blasted and nickel plated Crank butt-welded Plastic cap black
Revolving handles GN 598 |
Commercial cranked handles GN 369 are for light duty applications and are of extremely good value. A suitable dowel in the shaft and the slot in the handle provides a cheap connection to the shaft. To secure the handle permanently to the shaft, "remove the plastic cap and insert screw. Also a simple dowel connection is possible with Type A. Due to the production method which is not dependent on a specific shape, these cranked handles can be produced as specials at a competitive price. |
Commercial cranked handle GN 369-80-B10-N
Code No. 369 |
|
|
|
