adjustable tension levers pull to disengage gn 212.3adjustable st. steel-tension levers gn 212.5





Adjustable
St. Steel - Tension levers

GN 212.5


Type E angled lever
d1 d2 d3 d4 d5 h1 h3 h4 l t
  metric / UNC               min.

21 M 6 M 8 13,5 8 20 33,5 1 4 70 10
  1/4 x 20 5/16 x 18

24 M 8 M 10 16 10 25 40 2,5 4,5 96 14
  3/8 x 16 5/16 x 18

28 M 10 M 12 19 12 30 48,5 4,5 4,5 110 17
3/8 x 16 1/2 x 13
Specification Information How to order
Stainless Steel
German Standard No. 1.4305

matt shot-blasted

Ball knob DIN 319
Plastic, black

St. Steel - properties

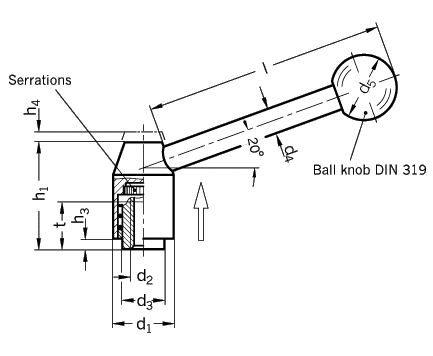

Adjustable tension levers GN 212.5 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

Adjustable tension levers GN 212.3
(steel, blackened)

St. Steel - Tension levers GN 212
(non adjustable)

Adjustable
St. Steel-Tension lever
GN 212.5-28-M12-E

Code No. 212.5
d1 28
d2 M12
Type E
