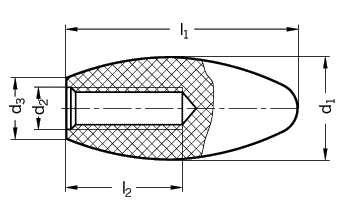

Elliptical shaped knobs |
GN 201 |
| d1 | d2 | d3 | l1 | l2 | |
| min. | |||||
| 14 | M 5 | 7 | 34 | 25 | |
| 23 | M 6 | M 8 | 14 | 60 | 17 / 22 |
| 26 | M 8 | M 10 | 16 | 70 | 25 |
| 30 | M 10 | M 12 | 16 | 65 | 26 |
| 35 | M 12 | M 16 | 22 | 85 | 28 |
| Specification | Information | How to order |
| Plastic Duroplast (Phenolic) black shiny finish |
Elliptical shaped knobs are often used on gear "levers and handles instead of ball knobs DIN 319. | Elliptical shaped knob GN 201-30-M10
Code No. 201 |
|
|
|
