Side thrust pins

GN 715

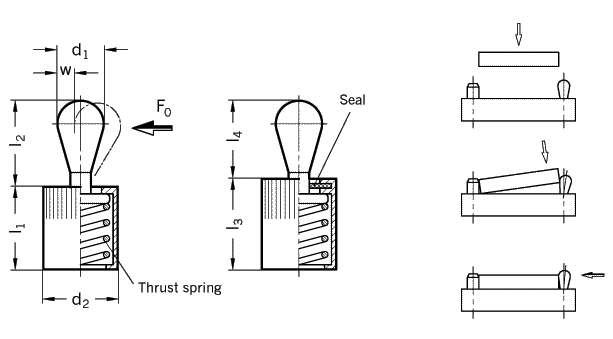

Type SA thrust pin steel, without seal Type SB thrust pin steel, with seal
Type KA thrust pin technopolymer, without seal Type KB thrust pin technopolymer, with seal
d1 Side thrust F0 [N] a1 a2 d2 d3 H8
  Thrust pin Thrust pin         min.
  Type SA/SB Type KA/KB

3 10 20 40 10 1,5 3,5 6 6 7
5 20 50 100 20 2,5 5,7 10 10 12
6 40 75 150 40 3 7,7 10 10 12

8 50 100 200 50 4 8,9 12 12 14
10 100 200 300 100 5 10,7 16 16 18
d1 l1 -1 l2 l3 -1 l4 w x1 x2 Code No.
                Mounting tool

3 7 4 7 4 1 1 0,75 GN 715.1-3
5 11 6,7 11,5 6 1,6 1,7 1,3 GN 715.1-5.6
6 11 10,7 11,5 10 2 1,9 1,4 GN 715.1-5.6

8 13 13,9 14 13 2,6 2,7 2,1 GN 715.1-8
10 17 16,7 18 16 3,2 3,4 2,7 GN 715.1-10
Specification Information How to order
Body aluminum

without seal: silver passivated
with seal: gold passivated

Thrust pin steel
(Type SA / SB)
hardened and zinc plated

Thrust pin plastic (DELRIN)
(Type KA / KB)

Thrust spring coding

size 3,6,8,10
low thrust: silver
medium thrust: gold
high thrust: copper

only size 5
low thrust: copper
medium thrust: silver
high thrust: gold

Seal rubber
NBR(PERBUNAN)

Spring loaded side thrust pins GN 715 are versatile and practical elements for holding, positioning and clamping of workpieces.

They eliminate costly alternatives, are space saving and easy to install. The knurled body requires only a hole tolerance of H8.

For easy mounting suitable tool GN 715.1 -... is available.
