Quick release hand knobs |
GN 6336.3 |

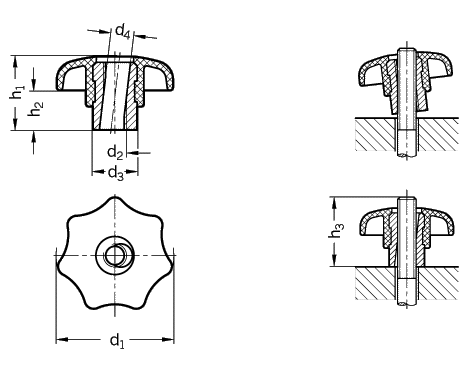

| d1 | d2 | d3 | d4 | h1 | h2 ~ | h3 |
| min. | ||||||
| 40 | M 8 | 16 | 8,4 | 26 | 13 | 24 |
| 50 | M 10 | 20 | 10,5 | 34 | 17 | 30 |
| 63 | M 12 | 26 | 13 | 42 | 21 | 37 |
| Specification | Information | How to order |
| Plastic Technopolymer (Polyamide) reinforced black matt finish Boss steel, zinc plated |
Quick release hand knobs GN 6336.3 are used in such
applications where the knob has to be completely removed after the
releasing operation and refitted very rapidly for re-clamping.
The knob is tilted over the threaded spindle. When in position, the knob is brought into a straight position for meshing of the two threads on nut and spindle. The knob will then have to be turned only by fraction of a rotation to achieve clamping. The use of this knob is, however, limited to such applications where relatively low clamping forces are required. Quick release knurled nutsGN 6303.1 |
Quick release hand knob GN 6336.3-50-M10 Code
