Aluminum Cabinet "U" handles |
GN 565.2 |

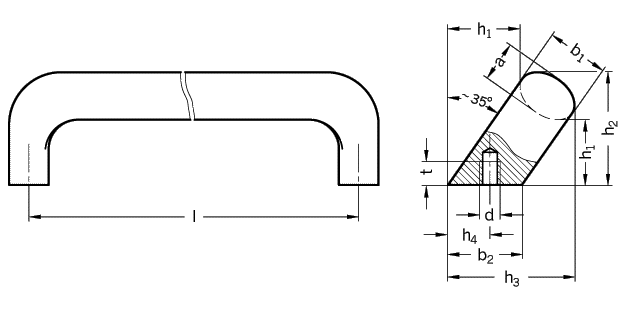

| b1 | Length l | a | b2 | d | h1 | h2 | h3 | h4+1 | r | t |
| 20 | 112 | 13 | 24 | M 6 | 32 | 48 | 50 | 13,5 | 13 | 10 |
| 20 | 128 | 13 | 24 | M 6 | 32 | 48 | 50 | 13,5 | 13 | 10 |
| 26 | 128 | 17 | 32 | M 8 | 34 | 54 | 57 | 18 | 17 | 12 |
| 26 | 160 | 17 | 32 | M 8 | 34 | 54 | 57 | 18 | 17 | 12 |
| Specification | Information | How to order |
| Aluminum
Plastic coated
matt
blank (BL) |
Cabinet "U" handles GN 565.2 are a further development of GN 565. The angled contact surface allows improved access even in tight spaces such as corners. Produced from profiled aluminum extrusions their special features are their rigidity and smooth "surface. Good design and ergonomical shaping were essential for the choice of the profile. When coated with epoxy resin its handability is further enhanced. Lengths other than standard are available - "especially extra long versions. |
Cabinet "U" handle GN 565.2-20-128-SW
Code No. 565.2 |
|
|
|
