without thread, for welding
St. Steel - Cabinet U-handles

GN 425.3

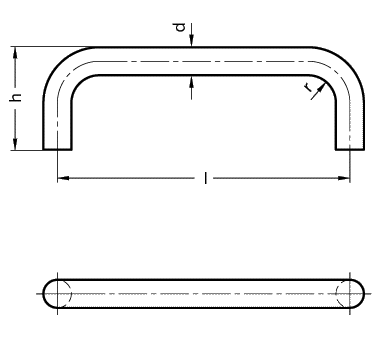

d1 Lenght l h r

10 125 43 12
10 160 43 12

12 125 51 14
12 160 51 14
12 200 51 14
Specification Information How to order
Stainless Steel (NI)
German Standard No. 1.4301

matt, shot blasted

St. Steel properties

These handles GN 425.3 can be produced in small quantities to lengths in accordance to customer requirements.

St. Steel - Cabinet U-handles GN 425
(with mounting thread)

St. Steel - Cabinet U-handles GN 565.5
(elliptical cross section)

St. Steel-
Cabinet U-handle
GN 425.3-12-160-NI

Code No. 425.3
d 12
Lenght l 160
St. Steel NI
