Cabinet "U" handles |
GN 425.1 |

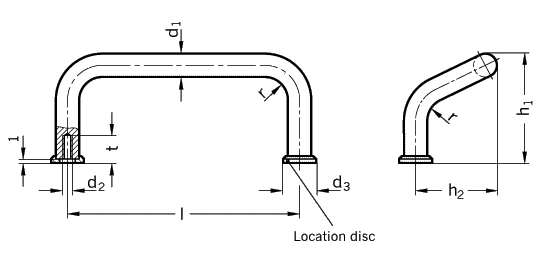

| d1 | Length l | d2 | d3 | h1 | h2 | r | t |
| 10 | 88 | M5 | 15 | 47 | 35 | 12 | 12 |
| 10 | 100 | M5 | 15 | 47 | 35 | 12 | 12 |
| 10 | 120 | M5 | 15 | 47 | 35 | 12 | 12 |
| Specification | Information | How to order |
| Steel Chrome plated (CR)
Location disc |
Cabinet "U" handles GN 425.1 are supplied with two zinc plated location discs. They guarantee a perfect location even with large holes in the cabinet. The discs are loosely enclosed. |
Cabinet "U" handle GN 425.1-10-100-CR
Code No. 425.1 |
|
|
|
