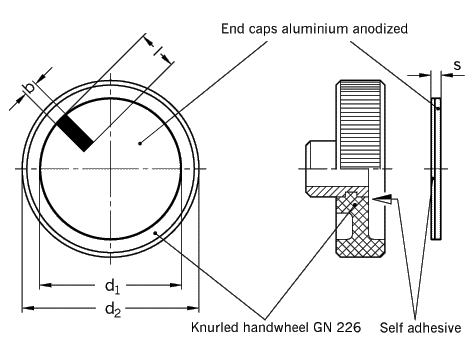

for knurled handwheels GN 226 Cover discs |
GN 226.1 |
| Type A with black symbol | Type B plain |
| d1 | d2 | b | l | s | |
| Handwheel | |||||
| 39 | 50 | 4 | 10 | 0,4 | |
| 52 | 63 | 5 | 12 | 0,4 | |
| 67 | 80 | 6 | 15 | 0,4 |
| Specification | Information | How to order |
| Aluminum
anodized Symbol black self-adhesive |
Cover discs GN 226.1 not only improve the appearance of the knurled handwheels GN 226 , but also widen the range of applications. Apart from the standard symbol, diagrams and or other symbols can be printed. Cover discs and knurled handwheels are supplied separately. |
Cover disc GN 226.1-52-A
Code No. 226.1 |
|
|
|
