side thrust pins gn 716ball lock pins, self locking, with clamping length compensation gn 113.1





Self locking
Ball lock pins

GN 113

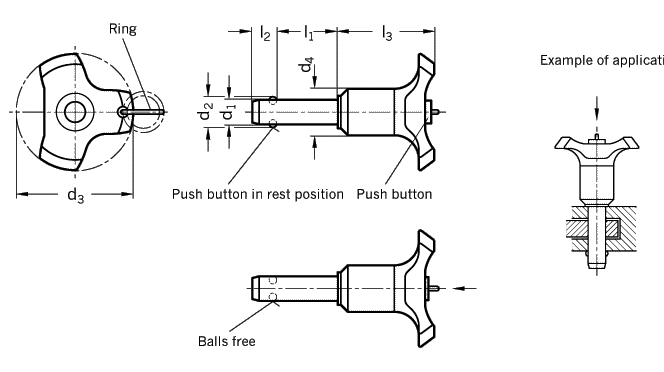

d1 l1 +0,6                 d2 d3 d4 l2 l3 Lo- Double
-0,4/-0,8                             cation shear-
                              bore ing
                              H11 force in
                                [KN]

5 10 15 20 25 30         5,5 38 16 6 31,5 5 24
6 10 15 20 25 30 35 40 45 50 7 38 16 7 31,5 6 35
8 20 25 30 35 40 45 50     9,5 38 16 8 31,5 8 63

10 20 25 30 35 40 45 50 60   12 43 23 9 36 10 100
12 25 30 35 40 45 50 60 70 80 14,5 43 23 10 36 12 144
16 30 35 40 45 50 60 70 80 19 50 26 13,5 45 16 257
Specification Information How to order
Pin
Stainless steel
German Standard No. 1.4305

Handle
Plastic
Technopolymer (Polyamide)
black / orange
Temperature resistant
from -30 �C up to +80 �C

Balls
Stainless steel
German Standard No. 1.3541

Spring
Stainless steel
German Standard No. 1.4568

Ring
Steel, nickel plated

ISO-fits

St. Steel - properties

Ball lock pins GN 113 are used for rapid fixing, connecting and securing of components or work pieces.

A typical application are bearing shafts which have to be regularly mounted and demounted.

By depressing the spring-loaded push button the two balls are freed and by releasing the push button the balls will be locked.

The ring and chain are used to prevent loss or misplacement of the ball lock pin.

Ball lock pin
GN 113-8-25

Code No. 113
d1 8
l1 25
